KERWAX REPLICA RevC

Description

Pick the tube, shape your sound!

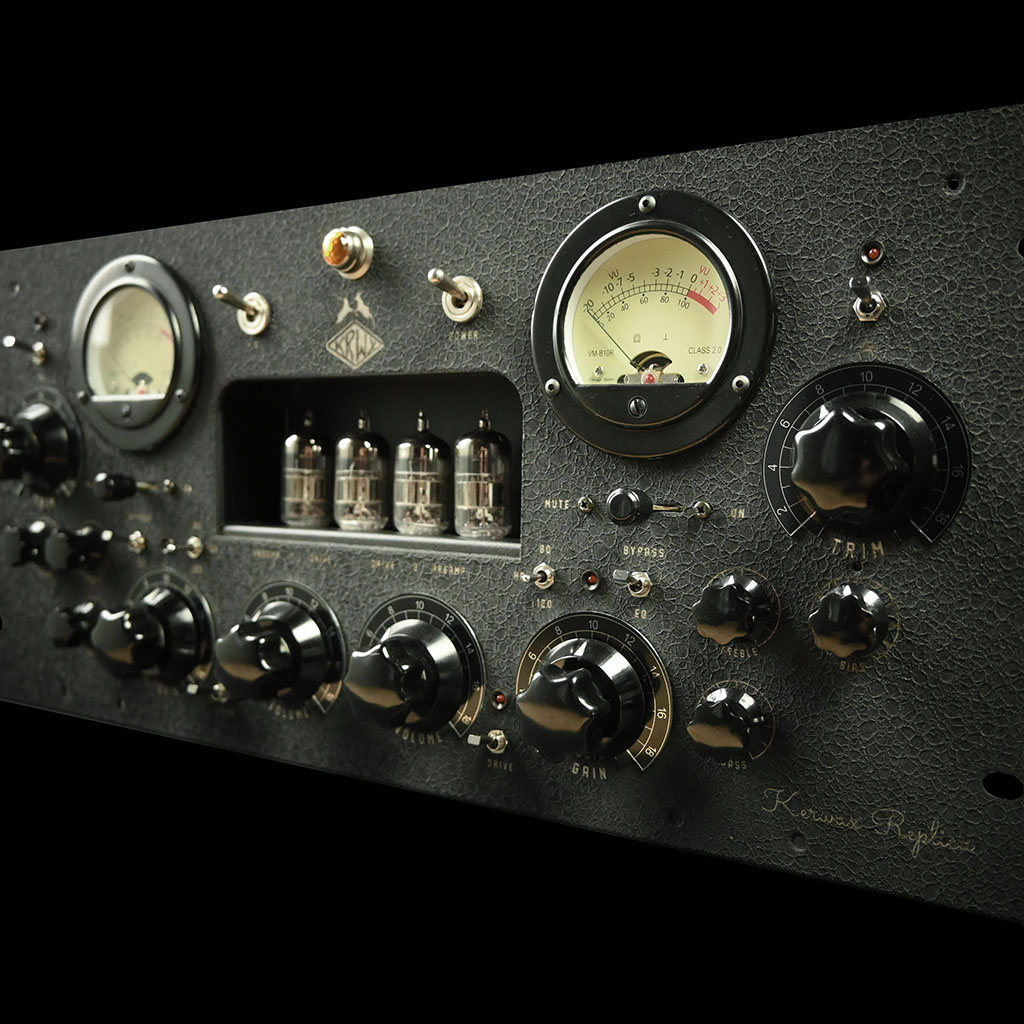

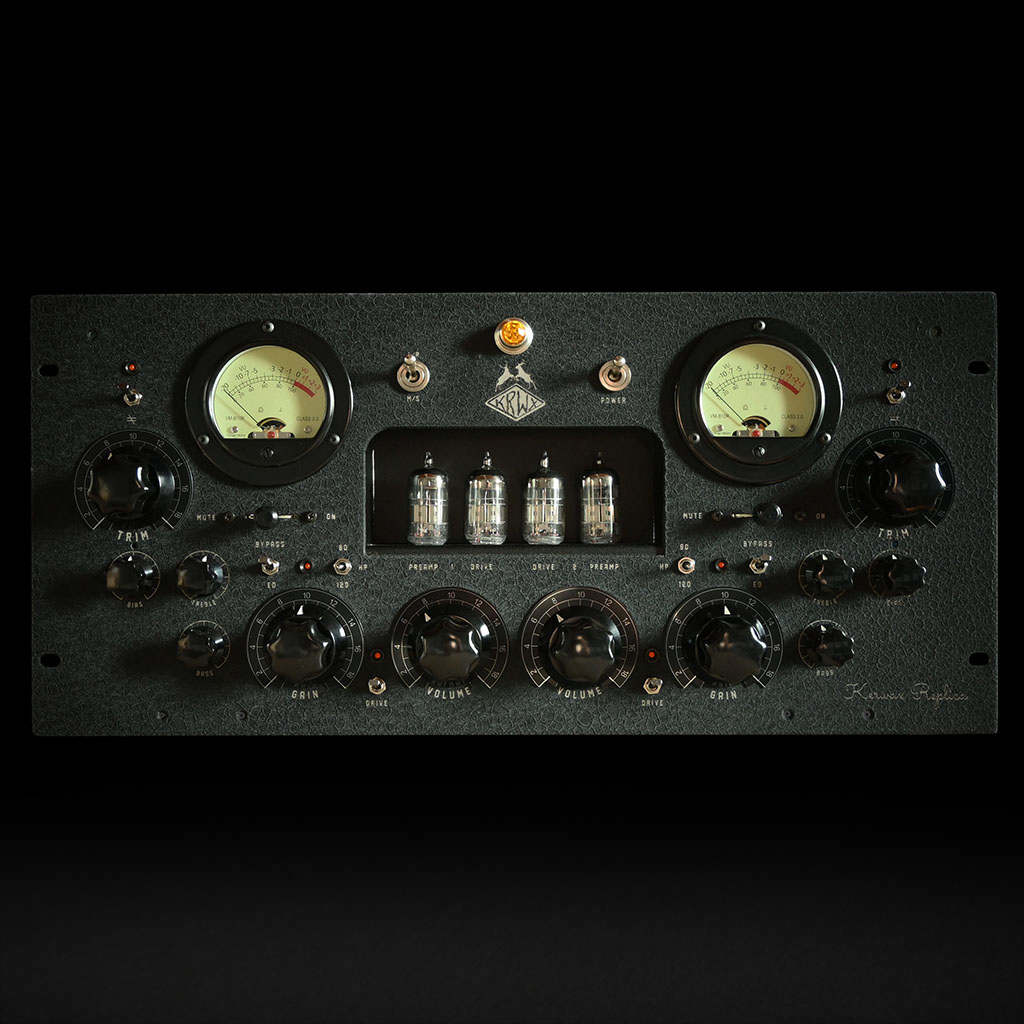

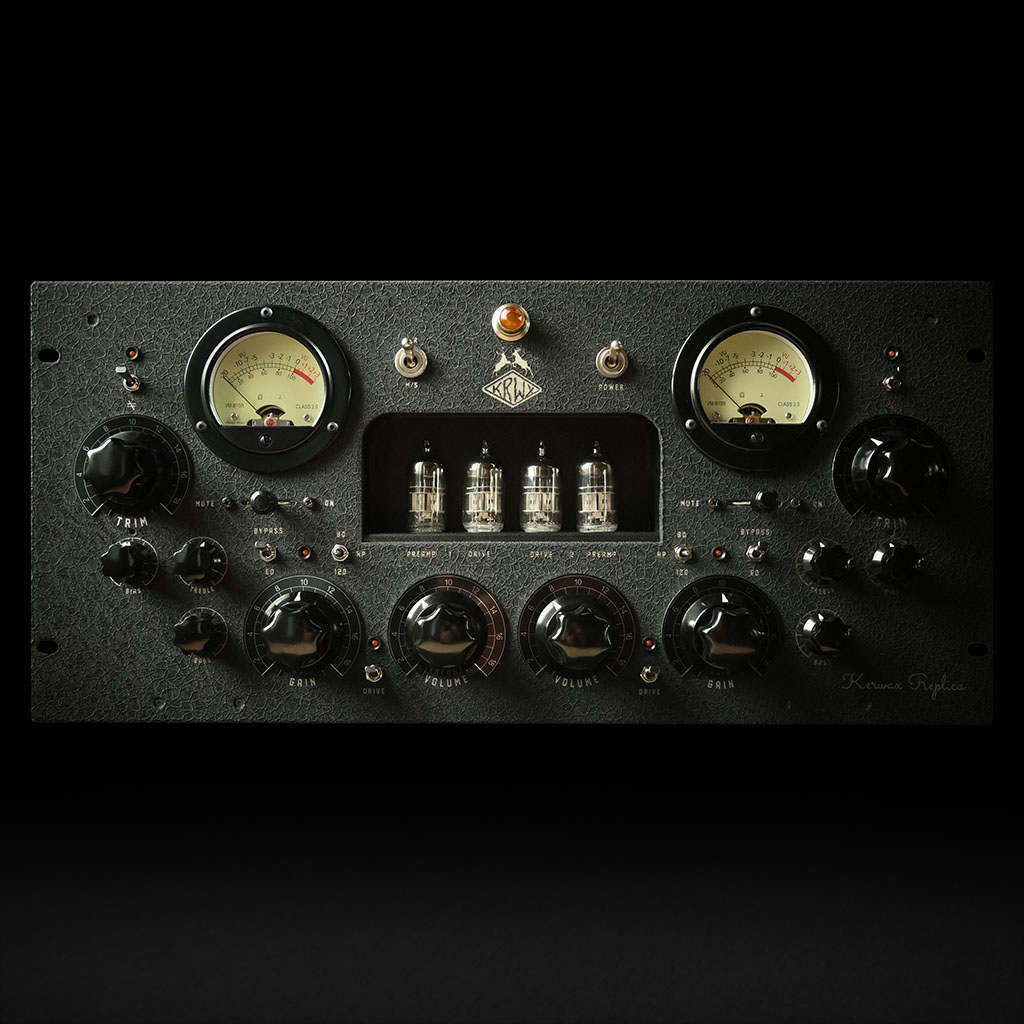

The KERWAX Replica is a 2-channel excerpt of the 24-channel custom tube mixer installed at Kerwax recording studio, a unique mixing desk conceived in the pure tradition of historical studios to meet the requirements of in-house sound engineers and producers.

Its 2 independent channels are ideal for stem or individual instrument processing. The M/S (mid/side) mode allows you to enhance your mastering and make it sounds wider.

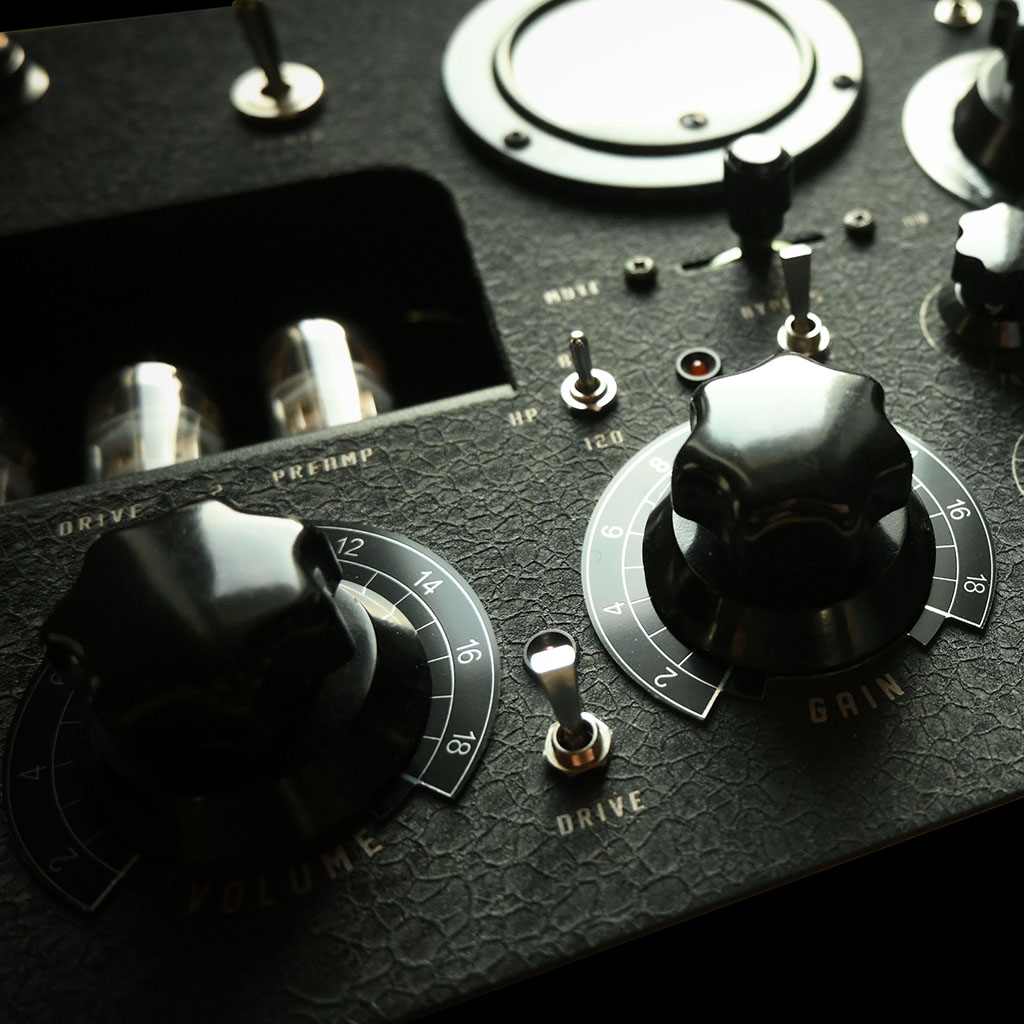

The Kerwax Replica creates a wide variety of tube harmonic distortion characteristics, from gentle enhancement to smashing blast, with an easy tweaking combination of gain drive and output volume stages, bias adjustment, and EQ knobs. It is the ideal companion as an insert or a front-end unit for processing and warming up your stems or mixes

Designed and fully hand-crafted in France with passion and attention to details, using only the finest components and locally sourced parts.

Technical specifications

• Audio modes: 2: L/R (Left/Right) + M/S (Mid/Side)
• Analog I/0: 2 input + 2 output, balanced XLR
• Line level: +4 dBu standard operating level
• Maximum output level: +20 dBu
• Frequency response: 30 Hz to 27 kHz (-1.5 dB)
• Total Harmonic Distortion: 80%

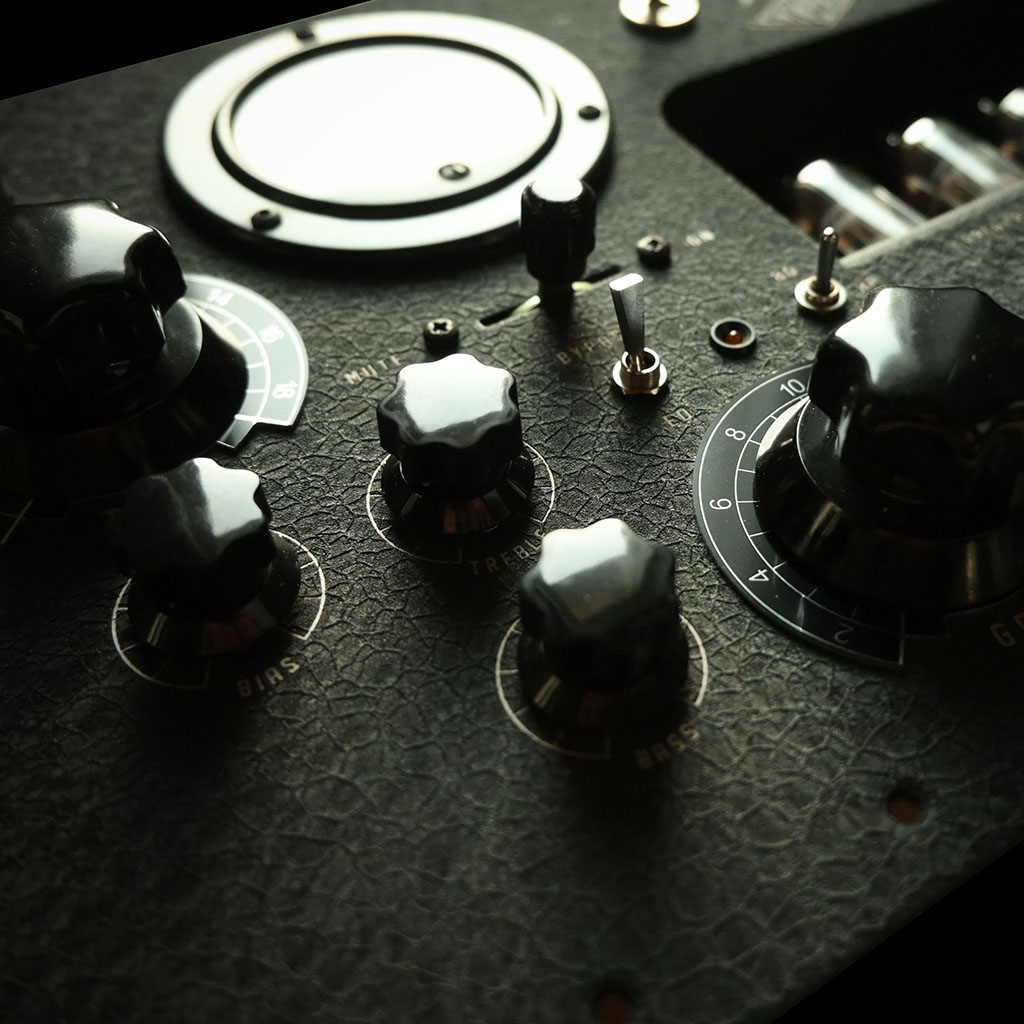

• Equalization: Treble and bass freq. EQ, +10 dB

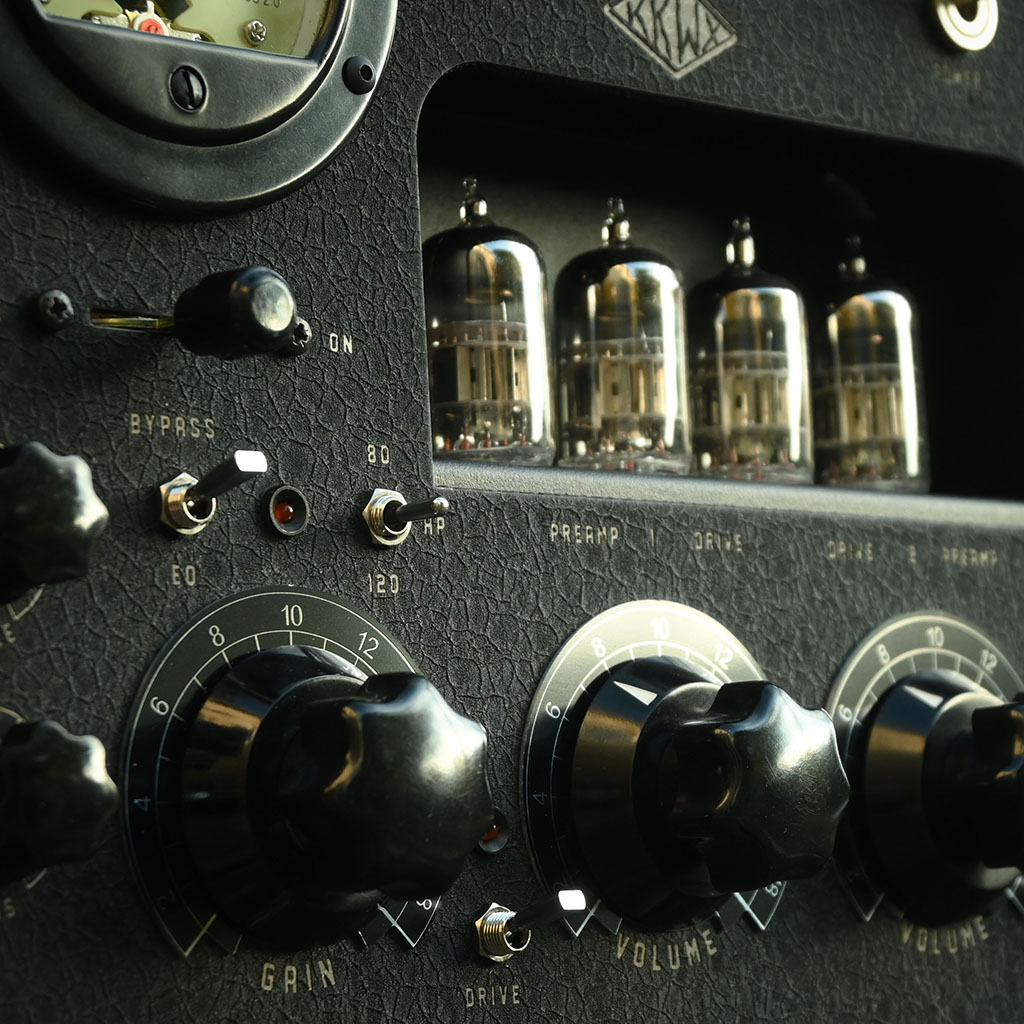

• High-pass filter: 80 Hz or 120 Hz, 6 dB per octave

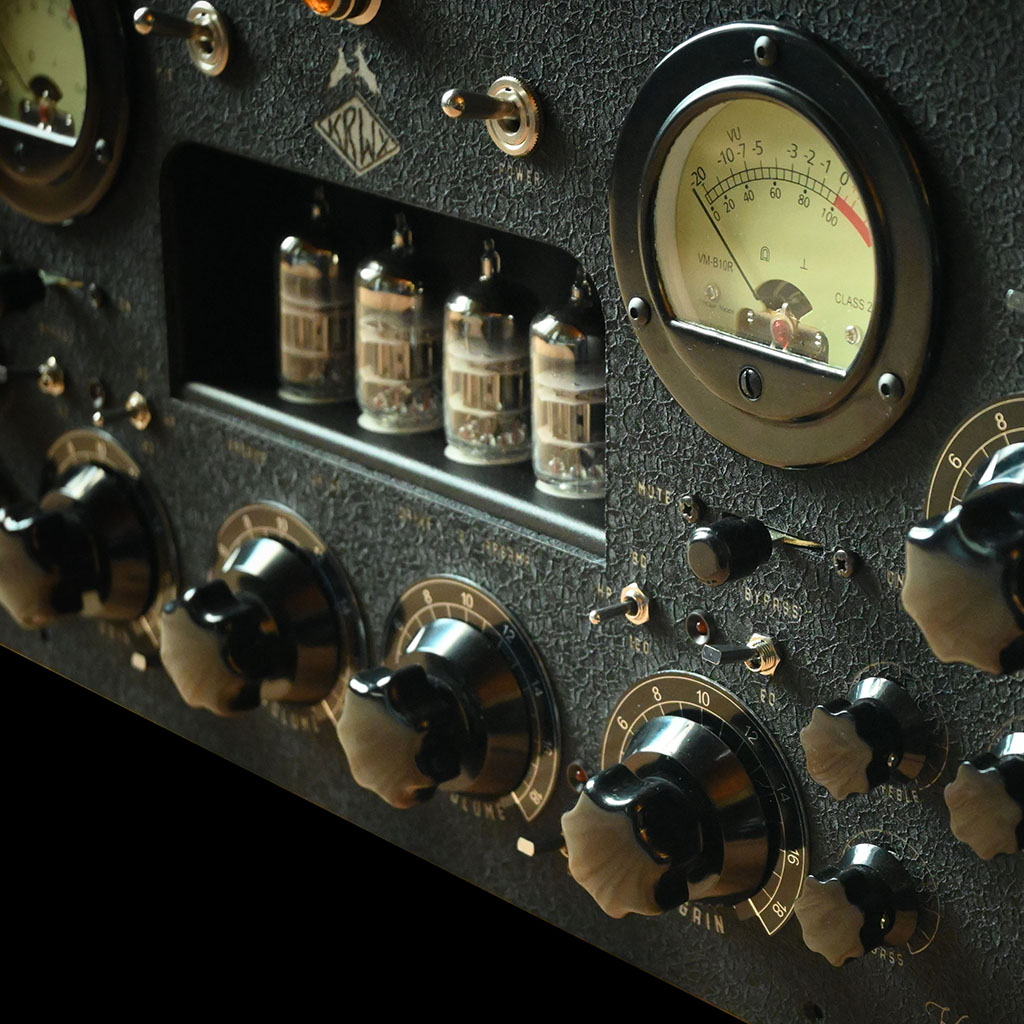

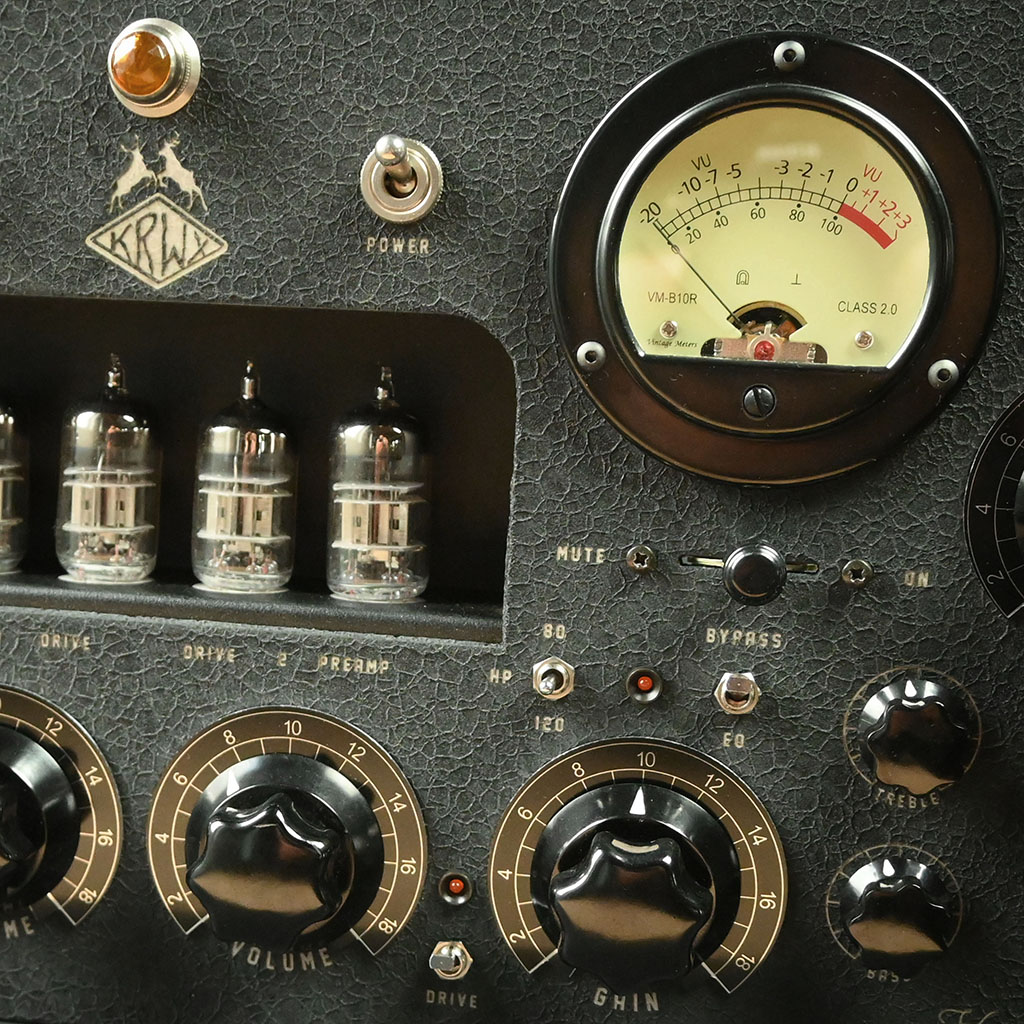

• Vacuum tubes: 12AX7-type (ECC83, 7025)
• Rack height: Standard 5U (5 units)
• AC power: 115V / 230V
• Power consumption: 27W
• Dimensions (L x W x H): 483 x 342.5 x 222 mm
• Weight: 10.6 kg
• Operating temp. range*: 10°C to 35°C
• Storage temp. range*: O°C to 50°C

Specifications subject to change without notice.
*Ensure that no condensation occurs.

More info here: Kerwax Replica PDF
